PET PREFORM MOULDS DESIGNED & BUILT TO-
- Produce high quality preforms
- Achieve fast cycle time
- Consume minimum energy
- Minimize mould change time
- Repair and service easily
- Provide a long and trouble free service life
FEATURES & BENEFITS-
Core lock type stack design
- Thread splits are locked in position by lock rings before mould closing to minimize wear of thread split tapers on the cavity side for a long flash-less service life of thread splits
- Preform collar is placed inside the thread splits to minimize clamping force requirement and resulting stress on the mould and clamping unit
Modular cavity construction
- Replaceable cavity lock ring; a wear part separated from cavity for inexpensive and easy replacement
- No axial load on cavity allowing the use of lower steel section thickness and faster cooling
Precision machined and finished
- Weight variation across cavities is minimal
- Excellent concentricity between core and cavity for minimum wall thickness variation
- Consistent dimensions across cavities
- Flash-less parting lines
- Good mould life due to perfect matching of components under load
Large gate diameter and generous venting
- Permits short injection and hold times
- Resin is exposed to less stress during injection
Thread splits manufactured from corrosion resistant steel
Gate thermally insulated from hot runner nozzle and aggressively cooled
- Low crystallinity in the gate area of the preform
Cavity and core manufactured from highly conductive, tough and wear resistant steel
- Fast and efficient cooling
- Highly resistant to mechanical failure
Wet area maximised in gate, cavity, thread splits and core
- Fast and efficient cooling
Cooling water channels in gate, cavity, thread splits and core, designed for turbulent flow at minimum flow rates
- Ensures fast and efficient heat exchange between steel and water
- Chilled water pump consumes less energy
- Requires a smaller flow rate pump
Large channel diameter for chilled water transport in mould base
- Low pressure drop in water distribution channels resulting in energy conservation
- Less pressure demand on the pump
All stack components hardened to over 50 HRC
- Highly wear resistant
- Resistant to plastic deformation and changes in dimensions
- Long service life
PVD coatings (optional)
- Extremely wear resistant to protect surfaces from wear
- Easier ejection with lower ejection forces
Mould base plates hardened and plated for corrosion resistance
- Highly rigid to withstand clamping forces without deformation
- Provides adequate support to stack components
- Extreme resistance to corrosion
- Long service life
Ergonomic
- Cores, core lock rings, thread splits, and cavity flanges can be changed with the mould in the machine, for quick and easy servicing
- Only one chilled water inlet and outlet for each mould section, with distribution channels drilled into the mould base plates, for quick mould change and low probability of water leakages
- Quick coupling connectors for quick mould change
Cavity Spacing as low as 40 mm x 100 mm for thread diameters of up to 25 mm and 45 mm x 100 for thread diameters up to 30 mm
- Permits the use of higher number of cavities for any machine size for higher productivity
Standardization of components
- Reduction in spares inventory for a group of moulds
- Easy servicing
Customized to fit any appropriate hot runner
Customized to fit any injection moulding machine
Support
- Comprehensive training provided to customer’s technicians in mould and hot runner maintenance as well as PET processing
- Professionally competent company technicians for mould commissioning, and training at the customer’s factory
- Standard wear parts are kept in stock for immediate shipment
We manufacture preform moulds for
- Husky HyPET 90, 120, 225, 300, 400 preform machines
- Husky GL 160, 225, 300, 500 preform machines
- Husky SX 500 preform machines
- Husky LX160, 225, 300 preform machines
- Husky XL160, 225, 300 preform machines
- Husky Index 90, 250 & 400 preform machines
- Krauss Maffei PETform 175 & 300 preform machines
- Sipa XForm preform machines
- Netstal PET Line preform machines
- Nissei ASB PM Series preform machines
- Ferromatic Milacron PETline preform machines
- Toshiba PETline preform machines
To see videos of PETform moulds in operation, click here.

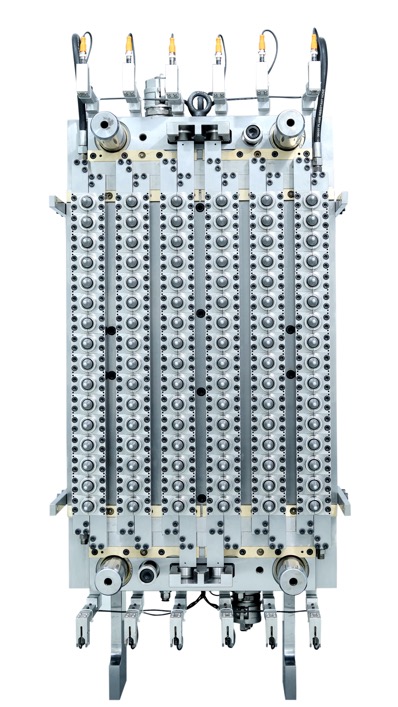

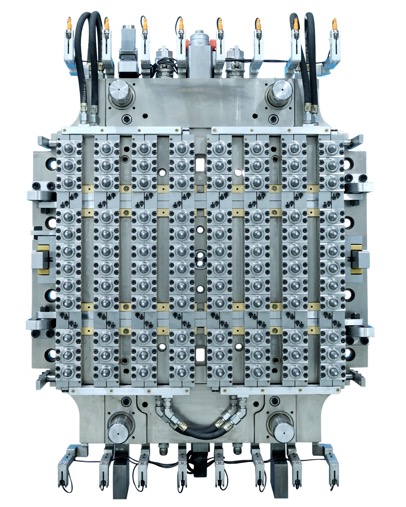

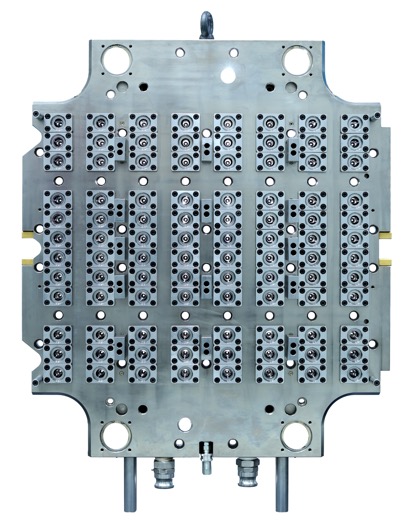

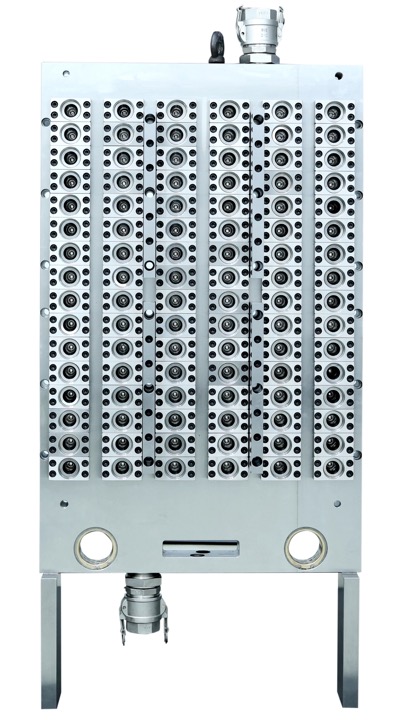

96 cavity mould for Husky HyPET 300

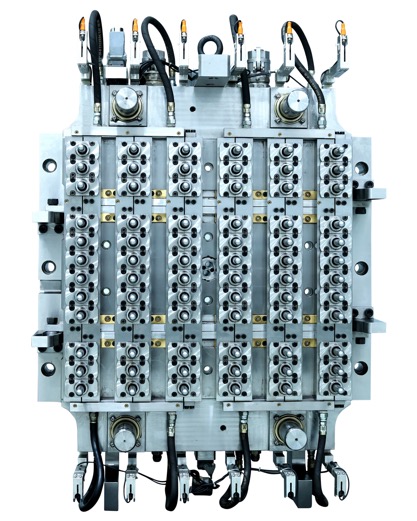

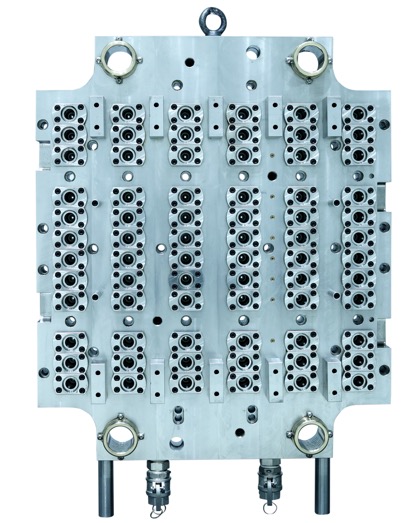

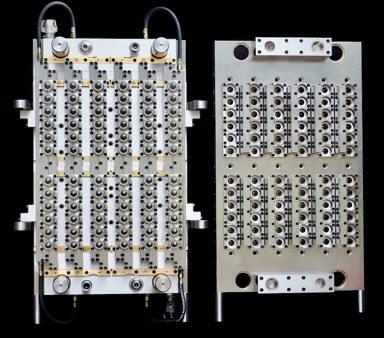

72 cavity mould for Husky HyPET 300

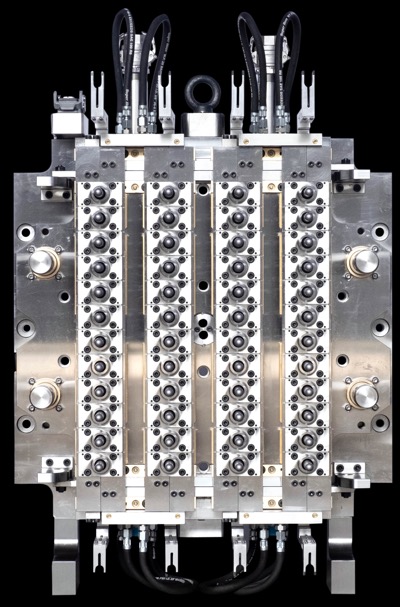

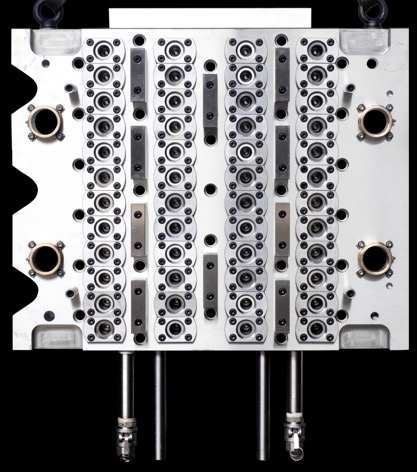

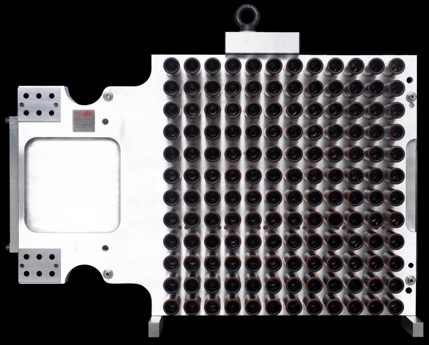

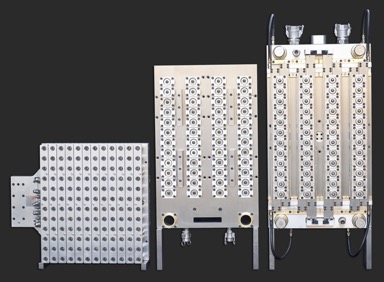

48 cavity mould for Husky HyPET 225
96 cavity mould for Milacron 250

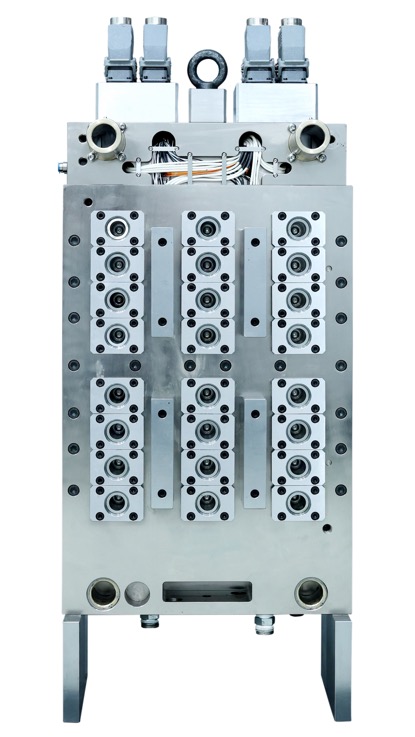

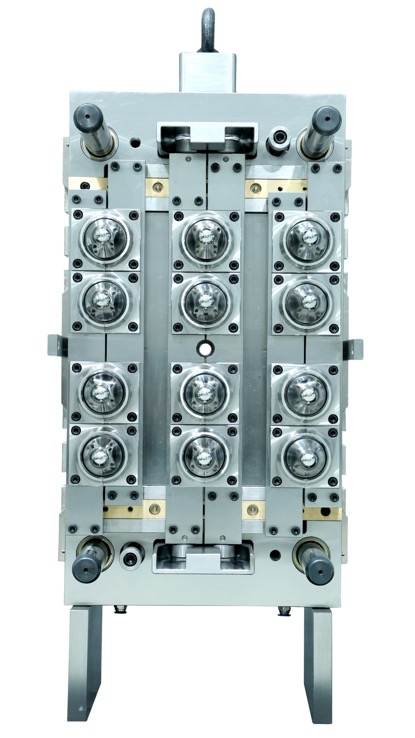

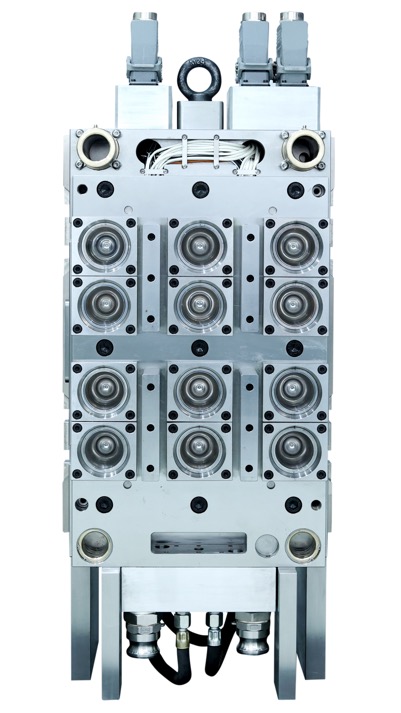

12 cavity 63 mm mould for Krauss Maffei KM175

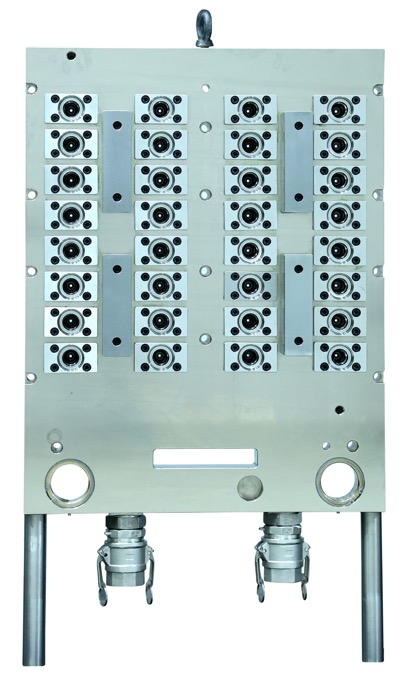

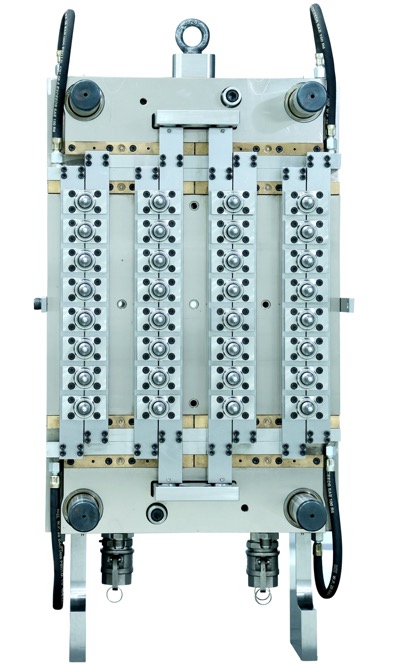

32 cavity mould for Krupp Premax

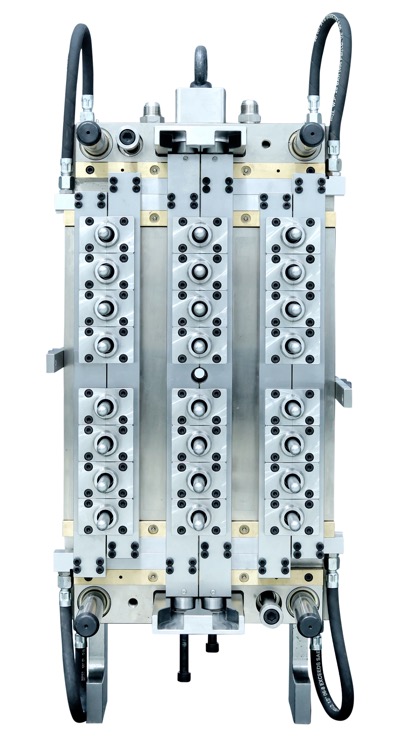

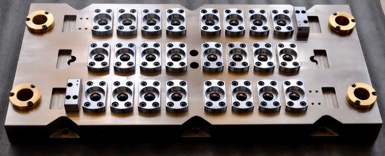

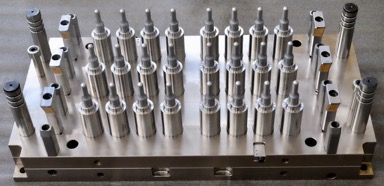

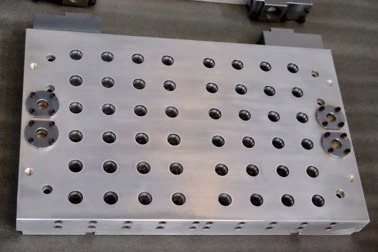

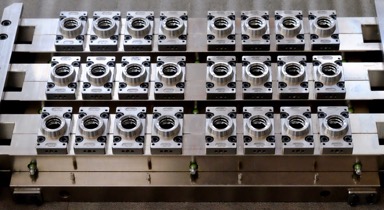

24 cavity mould for Sumitomo-Demag
