• Cores, Neck Rings, Cavities & Gate Inserts are manufactured exclusively using Deutsche Edelstahlwerke (DEW) or Bohler-Uddeholm’s ESR grade Corrosion resistant martensitic stainless steel steel.
• Stack parts are rough machined, stress relieved & vacuum hardened to 50-52 Rockwell.
• Final dimensions are machined only after hardening to nullify any changes in dimensions during hardening.
• All mating surfaces (that experience wear) are cylindrical / surface ground for high precision and long life.
• Manufacturing is conducted in a temperature controlled room.
• Components are measured in-process by work-probing systems.
• Component are measured post process by highly accurate measuring instruments & gauges in a temperature controlled (standard) room.
• Tolerances on critical dimensions is maintained within +/- 3 microns.

• Mould base plates are manufactured from DEW or Bohler Uddeholm’s 1.2085 pre hardened corrosion resistant stainless steel with hardness of 30-34 Rockwell.
• Mould base plates, hot runner manifold & backing plates are rough machined and stress relieved before finish machining. This is to ensure that the dimensions of the plates do not change over time.
• At PETform, finish sizing, drilling & boring is done by jig boring class machines* only and never general precision CNC machining centers.
• In process gauging is used for eliminating errors and holding close tolerances.
• All plates are inspected on CMMs in temperature controlled (standard) rooms before assembly.

• Hembrug Mikroturn 100CNC (Nano-Precision Turning Center)
• Hardinge Conquest 42 Super Precision Single Spindle
• Hardinge Conquest 42 Super Precision Dual Spindle
• Hardinge Conquest T65
• 3 x Jyoti CNC Lathes
• LMW Ultra Smart Turn
• Micromatic CNC Lathe
• Monforts KNC 5 Teach-In Lathe
• Traub 42/65 Dual Spindle Dual Turret Turn Mill Center
• Nakamura Tome TW20 MMY Dual Spindle Dual Turret Turn Mill Center

• Kellenberger Kel-Varia with full B-axis & 2 external + 1 internal wheel (CNC)
• Jones & Shipman Universal Cylindrical Grinder
• 3 x Micromatic Universal Cylindrical Grinders

• 2 x Huron KX30 (1.8 m x 1.0 m travels)
• Dixi DPC 200 Horizontal Machining Center
• Makino V55 HSC Machining Center
• Makino V33 HSC Machining Center
• Mikron VCP 600 HSC Machining Center
• Mikron UCP 600 5-axis HSC Machining Center
• Jyoti VMC850 with 3+2 axis
• Jyoti RDX 20 with 3+2 axis
• Jyoti PX10

• Dixi 75FE 4 Axis CNC Horizontal Jig Borer
• Hauser B3-DR
• Mitsui Seiki JIDC-5C CNC Horizontal Jig Boring Center
• Mitsui Seiki 6CNII CNC Jig Borer
• Mitsui Seiki 7CN CNC Jig Borer (1.53 m x 1.02 m travels)
• SIP 600 CNC Jig Borer
• SIP 8P Jig Borer (1.5 m x 1.0 m travels)
• SIP 5E Jig Borer

• Buck TBFZ 1100
• Ixion TL1004

• Favretto 1,500 mm x 2,000 mm
• ABA 500 mm x 1,000 mm
• Blohm HFS9 400 mm x 900 mm
• Okamoto 50UDX 200 mm x 500 mm
• Jung HF50 200 mm x 500 mm
• Chevalier FSG 618 150 mm x 500 mm
• Jones & Shipman 150 mm x 500 mm
• Jung 540 150 mm x 500 mm

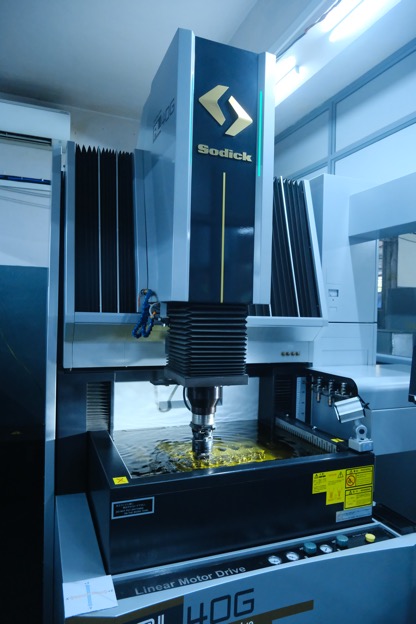

• Sodick AL40G Linear Motor

• Boehringer Copy Lathe
• Lagun FCM-1600 Milling Machine
• Alzarapid Radial Drilling

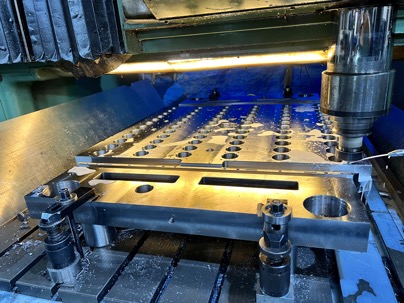

Mitsui Seiki 7CN - Jig Boring of a 72 drop Stripper Plate

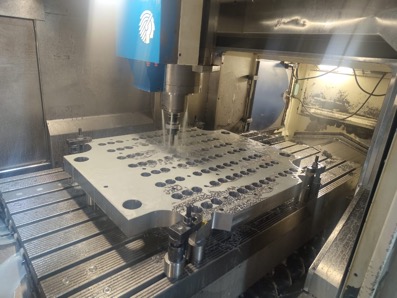

Huron KX30 - Milling of a 96 drop Cavity Plate

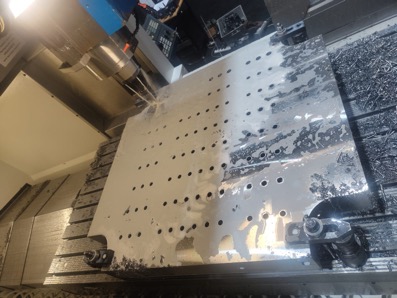

Huron KX30 - Milling of a 96 drop Core Plate

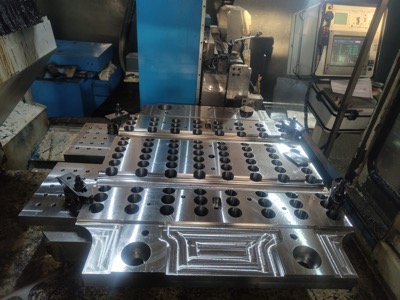

Buck - Gundrilling of a 96 drop Stripper Plate

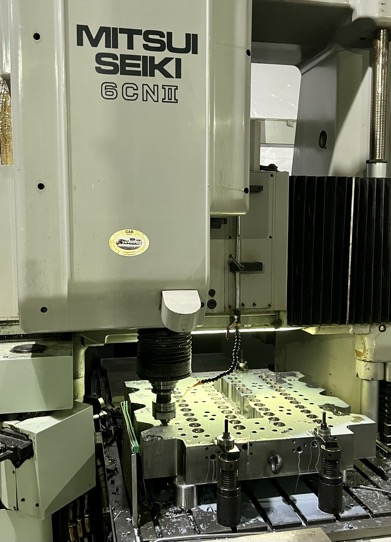

Mitsui Seiki 6CNII - Jig Boring of 48 drop Hotrunner Manifold Front Plate

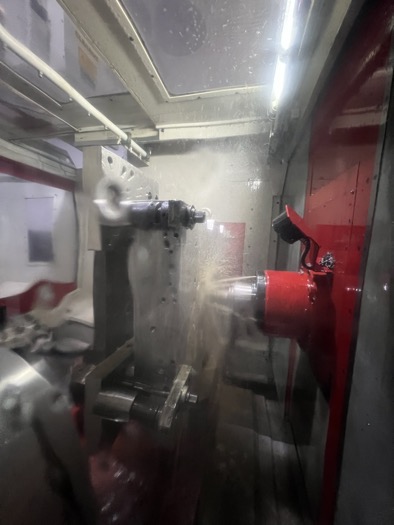

Dixi DPC 200 Horizontal Machining Center - Milling of Mould Base Plate

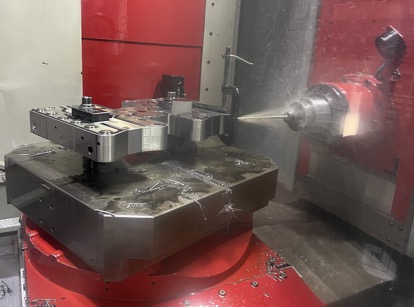

Dixi DPC 200 Horizontal Machining Center - Gun drilling of a Hot Manifold

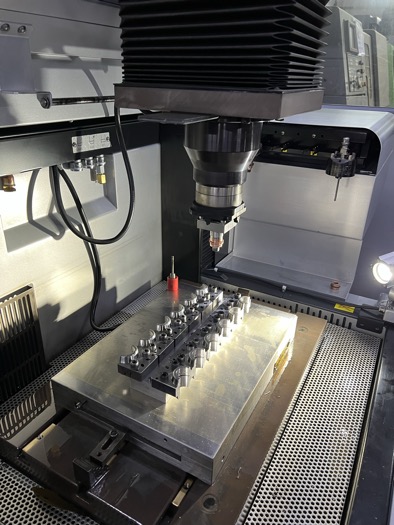

Sodick EDM - Neck Ring Erosion

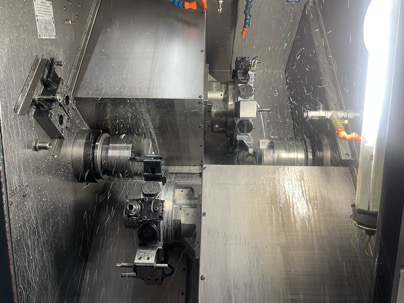

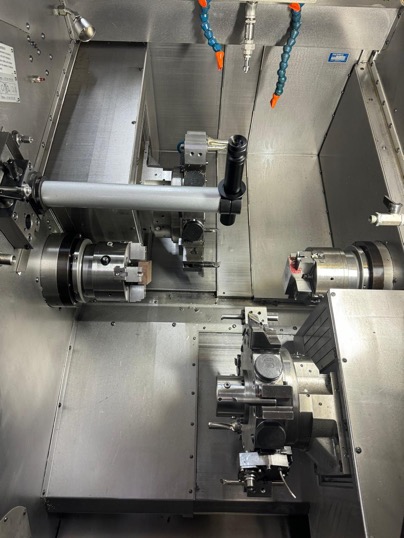

Traub Turn Mill Center (Double Spindle Double Turret)


\

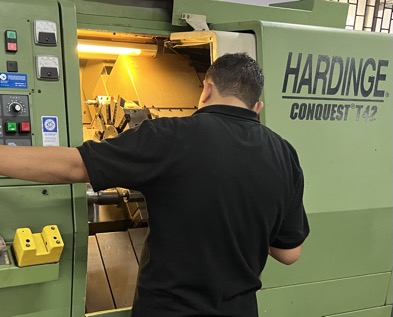

Hardinge Conquest Super Precision Lathe for Hard Turning

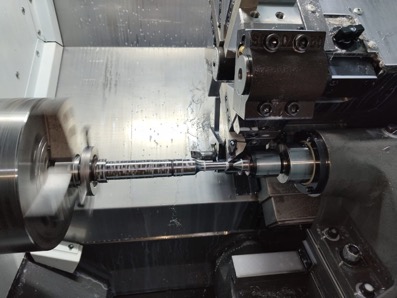

Hard Turning of Core

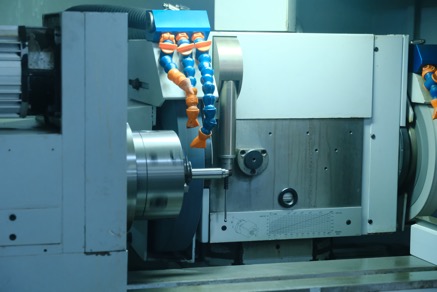

Kellenberger Kel-Varia Universal Grinder
