PETform offers exemplary value for money. It’s customers enjoy top class no-compromise performance at significantly lower investment vs other well known North American and European preform mould producers. We have been supplying moulds with a pitch of as low as 40 mm since 2019.
Consistent quality with minimal defects and superior finish.
Optimized design for maximum preductivity and efficiency.
Energy-efficient operation reducing operational costs.
Quick changeover design for flexible production.
User-friendly maintenance and service accessibility.
Durable construction for trouble-free operation.
Preform Moulds
Modular cavity construction
Preform collar is placed inside the thread splits to minimize clamping force requirement and resulting stress on the mould and clamping unit
Replaceable cavity lock ring; a wear part separated from cavity for inexpensive and easy replacement
No axial load on cavity allowing the use of lower steel section thickness and faster cooling
Weight variation across cavities is minimal
Excellent concentricity between core and cavity for minimum wall thickness variation
Consistent dimensions across cavities
Flash-less parting lines
Good mould life due to perfect matching of components under load
Permits short injection and hold times
Resin is exposed to less stress during injection
Low crystallinity in the gate area of the preform
Fast and efficient cooling
Highly resistant to mechanical failure
Fast and efficient cooling
Ensures fast and efficient heat exchange between steel and water
Chilled water pump consumes less energy
Requires a smaller flow rate pump
Low pressure drop in water distribution channels resulting in energy conservation
Less pressure demand on the pump
Highly wear resistant
Resistant to plastic deformation and changes in dimensions
Long service life
Extremely wear resistant to protect surfaces from wear
Easier ejection with lower ejection forces
Highly rigid to withstand clamping forces without deformation
Provides adequate support to stack components
Extreme resistance to corrosion
Long service life
Cores, core lock rings, thread splits, and cavity flanges can be changed with the mould in the machine, for quick and easy servicing
Quick coupling connectors for quick mould change
Only one chilled water inlet and outlet for each mould section, with distribution channels drilled into the mould base plates, for quick mould change and low probability of water leakages
Permits the use of higher number of cavities for any machine size for higher productivity
Reduction in spares inventory for a group of moulds
Easy servicing

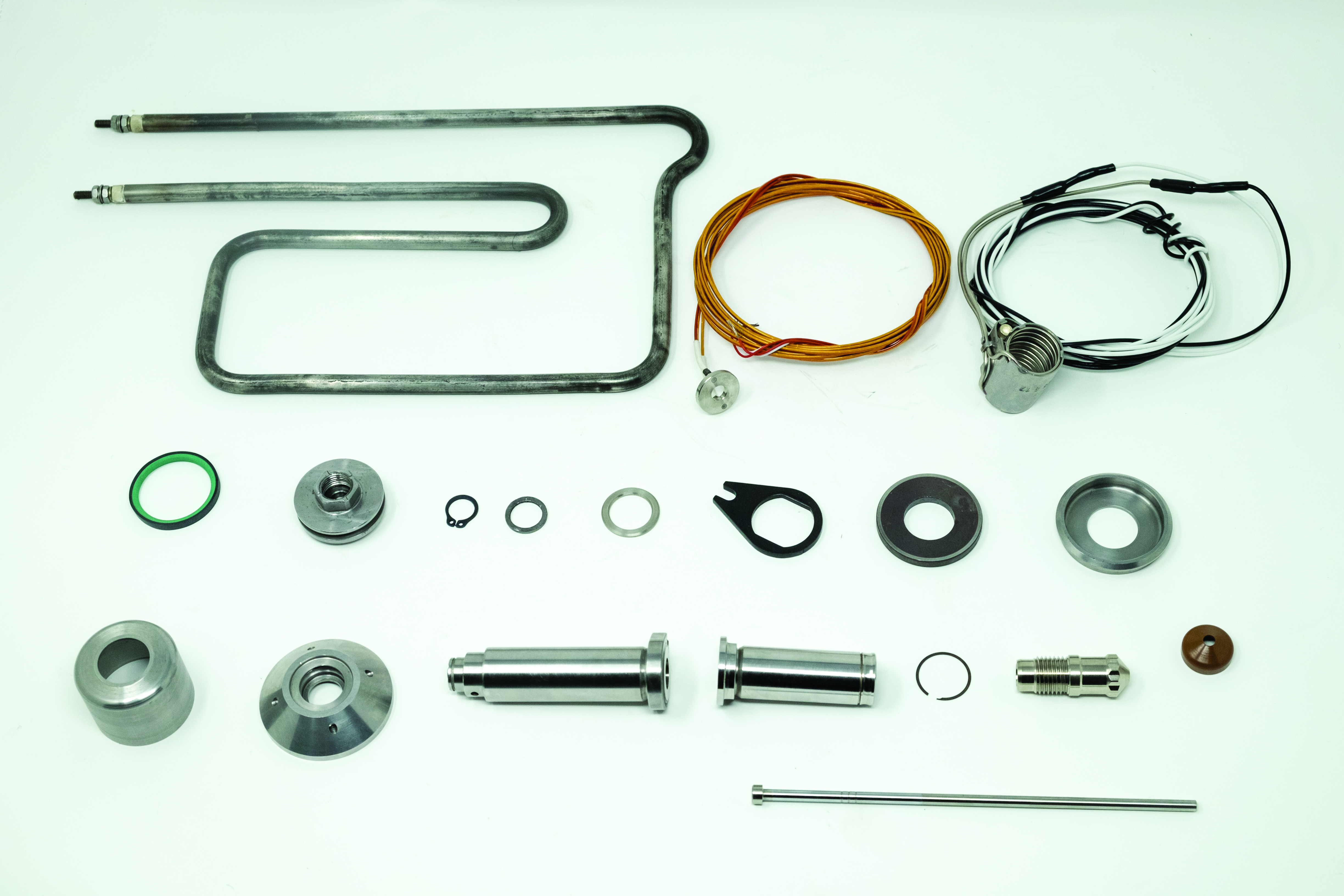

Comprehensive training provided to customer’s technicians in mould and hot runner maintenance as well as PET processing
Professionally competent company technicians for mould commissioning, and training at the customer’s factory
Standard wear parts are kept in stock for immediate shipment
HyPET 500 / G-Line 600
HyPET 400
HyPET 300
HyPET 225 / G-Line 300
HyPET 120
H-PET AE 230
H-PET AE 180
PET-LINE 6000
PET-LINE 5000
PET-LINE 3000
PET-LINE 3500
PET-LINE 4000
PET-LINE 2400
PET-LINE 2000
PET-LINE SE 5000
PET-LINE SE 4000
PET-LINE SE 3000
IPS 400
IPS 300
IPS 220
PETform 350
PETform 320
PETform 300
PETform 175 Gen2
PETform 175 Gen1
PM-70/65NII
PM-70/111N
PM-170/111M
Niigon 300
Niigon 150
